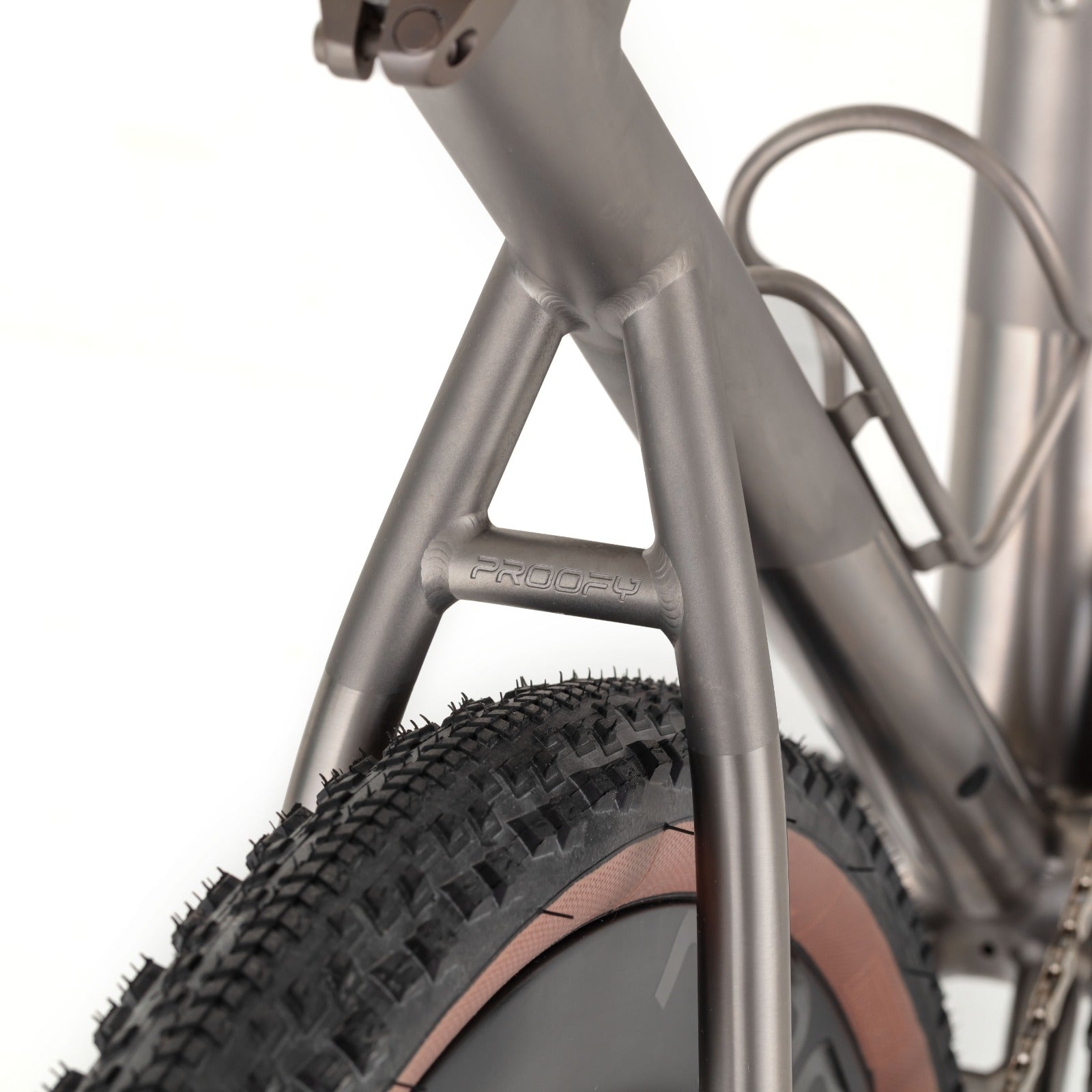

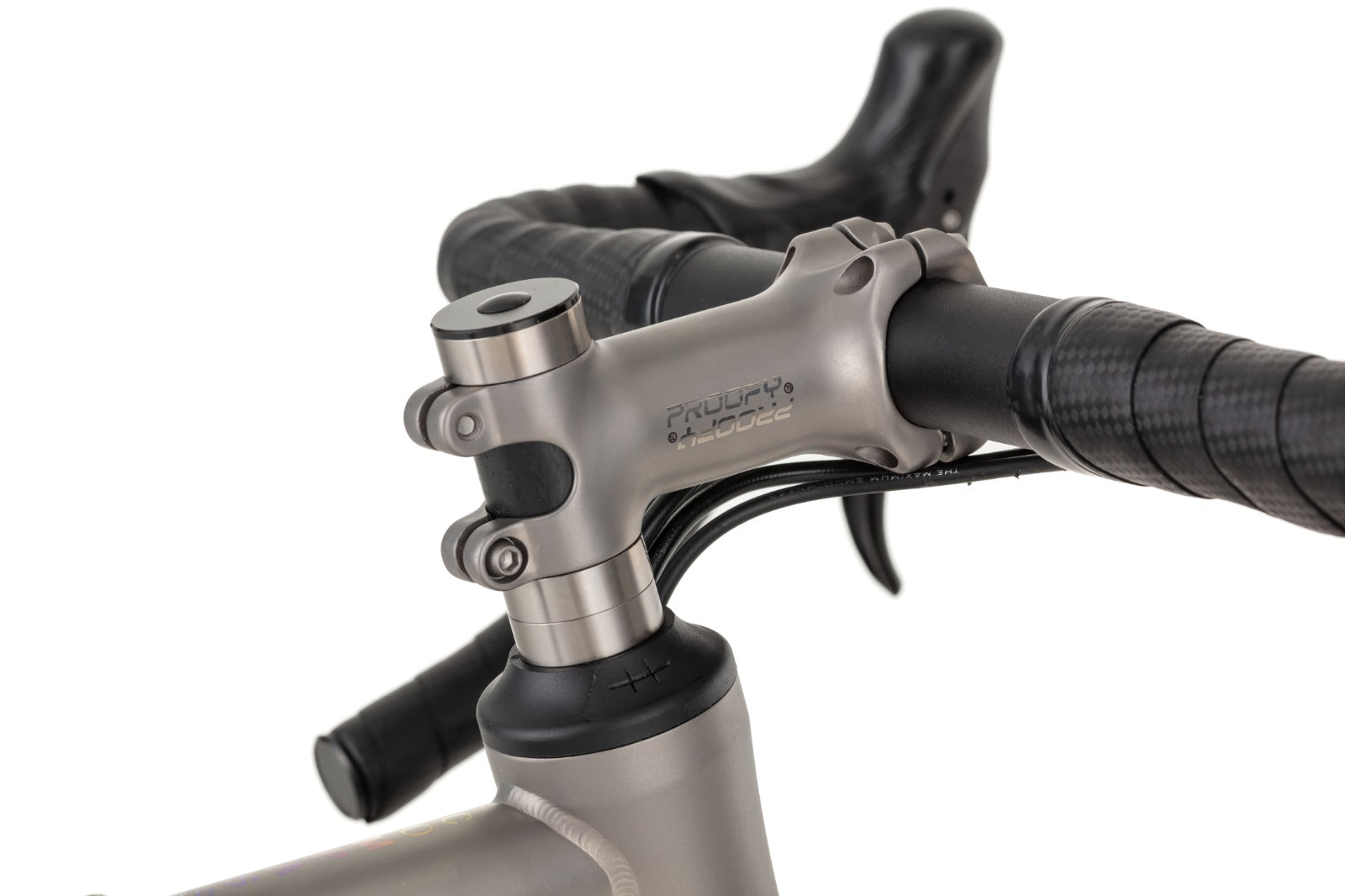

PROOFY COMPASS Ti
Complete bikes are available upon inquiry. Our team will assist with configuration.
Product Details
PROOFY COMPASS Ti is a gravel bike for riders who want to combine speed, durability and exceptional comfort. The titanium frame delivers a unique combination of low weight, extreme strength and flexibility, which perfectly filters out bumps. Gravel geometry provides stability in the terrain and effective grip on the road. Thanks to solid axles, internal cable routing and sufficient space for wide tires, it is ready for all adventurous challenges - from brisk swings to expedition bikepacking. The possibility of placing mounts anywhere on the frame according to the customer's wishes, individual anodizing (20 titanium color shades) and last but not least - geometry tailored to the customer's needs - all this is wrapped in a titanium package from the PROOFY brand.
PROOFY COMPASS Ti - "The bike you write your own story on."
Choice of set and braided wheels:
CAMPAGNOLO SUPER RECORD GRAVEL WRL 2x13 – PROOFY CARBON 45 MOC: 229 990,- CZK
CAMPAGNOLO SUPER RECORD GRAVEL WRL 1x13 – PROOFY CARBON 45 MOC: 199 990,- CZK
CAMPAGNOLO 1x13 EKAR GT – PROOFY CARBON 45 MOC: 119 990,- CZK
CAMPAGNOLO 1x13 EKAR GT – CAMPAGNOLO ZONDA GT MOC: 99 990,- CZK
|
MODEL: |
PROOFS COMPASS Ti |
|
SIZE: |
S;M;L;XL;XXL;XXXL other sizes – customization possible |
|
LOGO HEAD TUBE: |
CNC PROOFY vertical |
|
TITANIUM TREATMENT: |
Polishing, sandblasting, anodizing (logos) |
|
FRAME: |
TITANIUM grade 9 (Ti-3Al-2.5V) |
|
FLAP: |
UDH |
|
CENTRAL COMPOSITION: |
BSA – bottom service hole, CNC internal wiring routing |
|
WIRING: |
Internal and external routing possible |
|
BRAKE MOUNTING: |
PM |
|
AXIS: |
163mm M12XP1.5 |
|
SEATPOST: |
31.6mm carbon or titanium option – offset on request |
|
DERAILLEUR OPTION: |
34.9mm |
|
HEAD COMPOSITION: |
1 1/2'' headset (upper bearing 52mm, lower bearing 52mm) |
|
SADDLE COLLAR: |
34.9mm |
|
REAR HUB: |
142.0 x 12 mm |
|
MAXIMUM WIDTH OF THE TIRE: |
700×47C |
|
MOUNTS: |
Upper frame, seat tube, head tube (top side 3, bottom 2) – customization possible |
|
FORK: |
Carbon 50 offset |
|
WEIGHT: |
1670g |
GEOMETRY:
|
|
WITH |
M |
L |
XL |
XXL |
XXXL |
XXXXL |
|
Seat Tube Length |
480 |
510 |
540 |
555 |
570 |
600 |
630 |
|
Top Tube Length |
525 |
540 |
550 |
560 |
570 |
585 |
600 |
|
Head Tube Angel |
70° |
70.5° |
70.5° |
70.5° |
70.5° |
71° |
71° |
|
Head Tube Length |
120 |
135 |
160 |
173 |
185 |
210 |
225 |
|
Chain Stay Length |
440 |
440 |
440 |
440 |
440 |
440 |
440 |
|
Seat Tube Angel |
74° |
74° |
74° |
73° |
73° |
73° |
72.5° |
|
Wheel Base |
1019 |
1033 |
1042 |
1042 |
1053 |
1064 |
1074 |
|
Fork to Center Length |
589 |
602 |
612 |
612 |
623 |
623 |
623 |
|
BB Drop |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
|
Stack |
540 |
556 |
579 |
591 |
603 |
629 |
643 |
|
Reach |
368 |
381 |
382 |
378 |
384 |
392 |
397 |
